MADE IN JAPAN

Đặc điểm

• With its dual functionality, it's now much more convenient to use and carry.
• This is a multi-type connector that supports two types of terminals: insulated terminals (sleeves) and bare terminals (sleeves P and B).
• The force required to grip the handle when crimping bare terminals has been reduced by approximately 40% (compared to conventional products).
• The well-designed die tooth arrangement prevents misuse.
• It's lightweight, compact, and pocket-sized, fitting comfortably in your hand.
• Temporarily securing the terminals can be done easily with one hand.
• This elastomer grip fits comfortably in your hand.
• This is a promotional item and comes with a crimping tool and rubber strap.

Ứng dụng

• For electrical work, vehicle wiring, and distribution board work.
• This is a multi-type connector that supports two types of terminals: insulated terminals (sleeves) and bare terminals (sleeves P and B).
• The force required to grip the handle when crimping bare terminals has been reduced by approximately 40% (compared to conventional products).
• The well-designed die tooth arrangement prevents misuse.
• It's lightweight, compact, and pocket-sized, fitting comfortably in your hand.
• Temporarily securing the terminals can be done easily with one hand.
• This elastomer grip fits comfortably in your hand.

Thông số chi tiết

• Crimp terminals and sleeves with insulated coating (0.3, 0.5, 1.25, 2 sq) Bare crimp terminals and sleeves
• (1.25, 2 sq) Crimp
• terminals (mm²): CE1, CE2, CE5/1.25, 2
• Overall length (mm): 218
• Crimp terminals: Insulated closed-end connectors, bare crimp terminals and sleeves (P, B)
• Crimp terminals (mm²) for bare terminals: 1.25, 2
• Crimp terminals (mm²) for insulated terminals: 0.3, 0.5, 1.25, 2

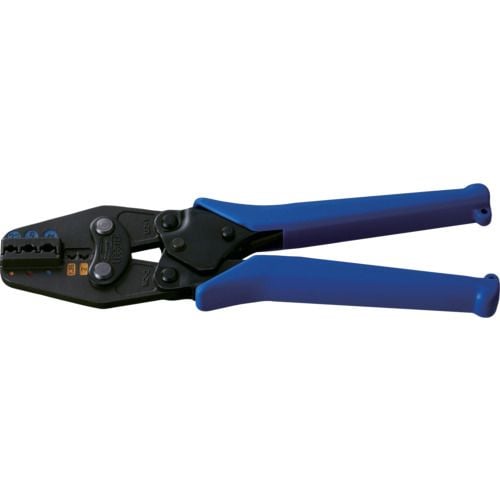

LOBSTER AKM2-CP
