Đặc điểm

• It is used as a liquid transfer pump by combining tubing, a pump head, and a pump (motor-driven unit).
• This tubing pump allows for easy flow control of liquids, gases, and slurry-like substances.
• By appropriately swapping out several types of tubes with different materials and diameters, and combining them with the pump head and drive unit, it can be used for a variety of purposes.
• Because the structure does not involve pistons, valves, or other components directly touching the sample, and only the tube makes contact, solvents and corrosive agents can be handled safely.
• 07522: Maintenance-free, high-precision digital type.

Ứng dụng

• Transport of pharmaceuticals, cosmetics, pesticides, herbicides, and nutrients.
• Food and beverage delivery.
• Ink and adhesive liquid transfer.

Thông số chi tiết

• Rotation speed reproducibility: ±0.25%
• Power supply (V): Single phase 90-260
• Width (mm): 211
• Depth (mm): 274
• Height (mm): 216
• Fluid flow rate (ml/min): 0.36-3400
• Rotation speed (rpm): 6-600
• Motor (W): DC75
• Motor: DC75W

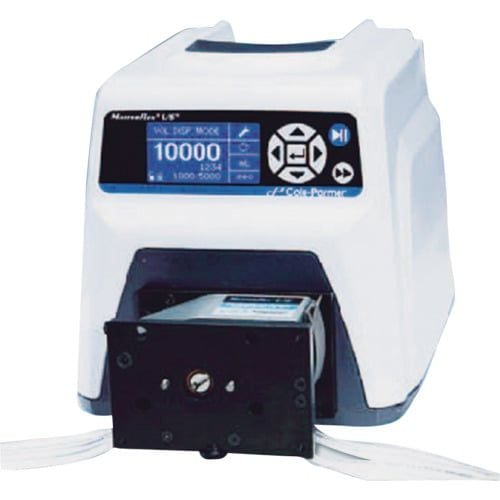

MASTERFLEX 07528-10
