MADE IN AMERICA

Đặc điểm

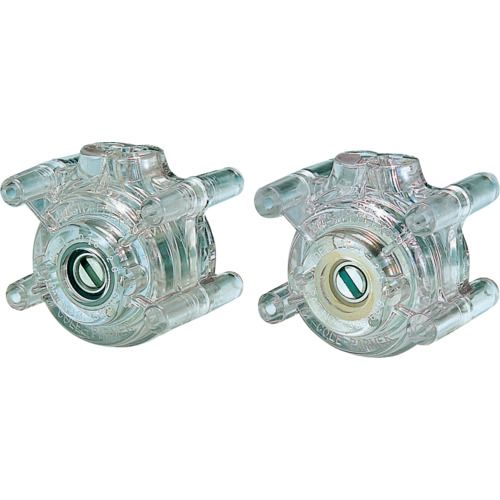

• This is a basic pump head.
• Up to four units can be mounted in a row.
• The case is made of polycarbonate molded material, which offers excellent impact resistance.
• It is used as a liquid transfer pump when assembled with a motor drive unit and tubing.

Note

• For high-speed continuous operation or when transferring chemicals, stainless steel rollers are recommended because their smooth surface reduces tube wear.
• Freight and installation fees are separate.
• The standard pump head cannot accommodate various pump tubes with different outer diameters. Please select the appropriate pump tube.
• Please note that if the "user who will be using the product" and the actual user differ, the product may not be covered under warranty.

Thông số chi tiết

• Width x Depth x Height: 77 x 64 x 77 mm
• Rotor: Stainless steel
• Flow rate (ml/min) Minimum: 0.8
• Flow rate (ml/min) Maximum: 480
• Compatible tube No.: 16

MASTERFLEX 07016-21
