MADE IN AMERICA

Đặc điểm

• It's a simple, all-in-one controller with variable rotation speed.
• It uses a DC motor, allowing for accurate liquid delivery even during continuous operation or at high speeds.
• The adoption of a soft start system extends the motor brush life, ensuring accurate fluid delivery over a long period.

Ứng dụng

• Transport of pharmaceuticals, cosmetics, pesticides, herbicides, and nutrients.

Thông số chi tiết

• Rotation speed reproducibility ±5%
• Motor DC37W
• External dimensions (W x D x H) 183 x 230 x 134 mm
• AC100V 50/60Hz 1.5A
• With reverse rotation function Power supply
• (V): Single phase 100
• Width (mm): 183
• Depth (mm): 230
• Height (mm): 134
• Fluid flow rate (ml/min): 1.20 to 2900
• Rotation speed (rpm): 20 to 600
• Motor (W): DC37

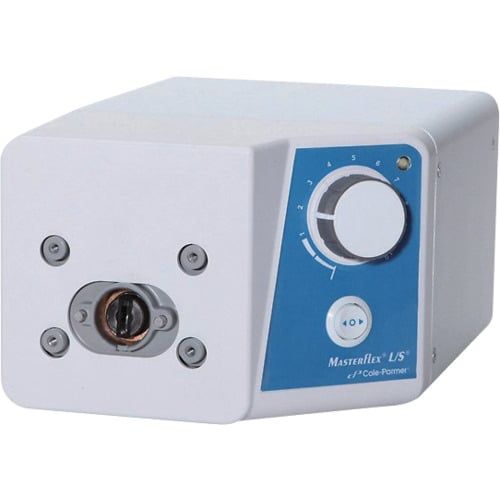

MASTERFLEX 07555-00
