MADE IN AMERICA

Đặc điểm

• It's a simple, all-in-one controller with variable rotation speed.
• It uses a DC motor, allowing for accurate liquid delivery even during continuous operation or at high speeds.
• The adoption of a soft start system extends the motor brush life, ensuring accurate fluid delivery over a long period.

Ứng dụng

• Transport of pharmaceuticals, cosmetics, pesticides, herbicides, and nutrients.

Thông số chi tiết

• Fluid flow rate: 0.42–1130 ml/min,
• Rotation speed: 7–200 rpm,
• Rotation speed reproducibility: ±5%,
• Motor: DC37W
• , External dimensions (W×D×H): 183×230×134 mm,
• AC100V 50/60Hz 1.5A ,
• Reverse rotation function,
• Power supply (V): Single phase 100, Width
• (mm): 183 , Depth
• (mm): 230,
• Height (mm): 134,
• Fluid flow rate (ml/min): 0.42–970,
• Rotation speed (rpm): 7–200,
• Motor (W): DC37

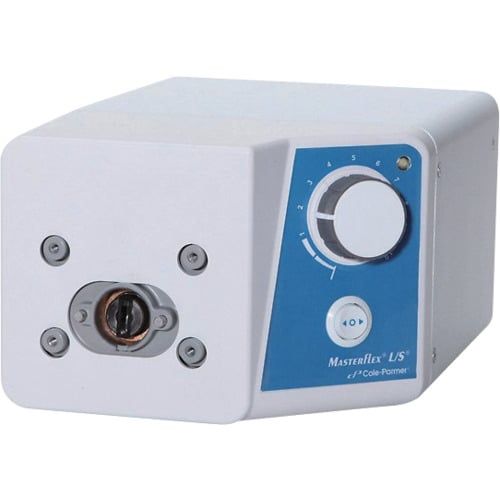

MASTERFLEX 07555-10
