Đặc điểm

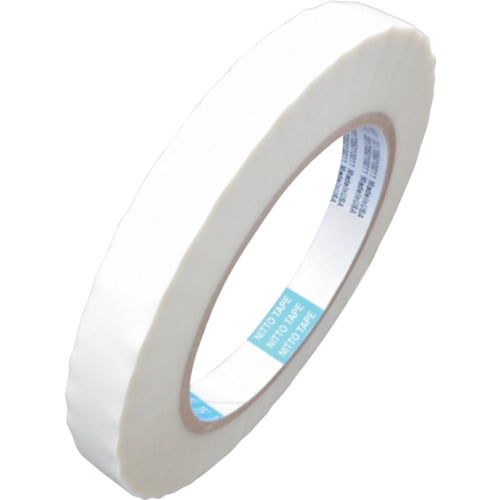

• This tape, made from a glass cloth base material with high heat resistance, can be used in a wide range of applications as a high-temperature insulating material.
• This tape has excellent solvent resistance and is also approved for UL flame retardancy.

Ứng dụng

• For insulating the ends and terminals of coils, etc.
• Securing the terminal board.
• Outer insulation for coils, harness wire cables.

Thông số chi tiết

• Color: White
• Width (mm): 12.7
• Length (m): 33
• Thickness (mm): 0.191
• Adhesive strength (N/10mm): 6.5
• Tensile strength (N/10mm): 323
• Operating temperature range (°C): 260°C/200°C (continuous allowable temperature)
• Applicable standards: Aircraft SPEC: BAC5307

NITTO P212X1/2
