MADE IN AMERICA

Đặc điểm

• It has excellent insulating properties and solvent resistance, and is also thin and easily adaptable.
• It has excellent abrasion resistance and is resistant to tearing.
• The adhesive used is silicone-based, and it can be easily removed even after heat has been applied.

Ứng dụng

• For bundling high heat-resistant electrical wires.
• For insulation of high-frequency motors and traction motors.
• For insulating the outer casing of small bobbin coils.
• For bundling magnetic wires.
• For masking circuit boards when using wave soldering.
• For masking during vacuum deposition and sputtering, and for temporarily fixing electronic components.

Thông số chi tiết

• UL Class H (180°C)
• Continuous use temperature: 200°C
• Color: Urban
• Width (mm): 19
• Length (m): 33
• Thickness (mm): 0.066
• Adhesive strength (N/10mm): 2.7
• Tensile strength (N/10mm): 63
• Continuous use temperature (°C): 180
• Elongation (%): 85
• Heat resistance temperature (°C): 260°/180° (continuous use)

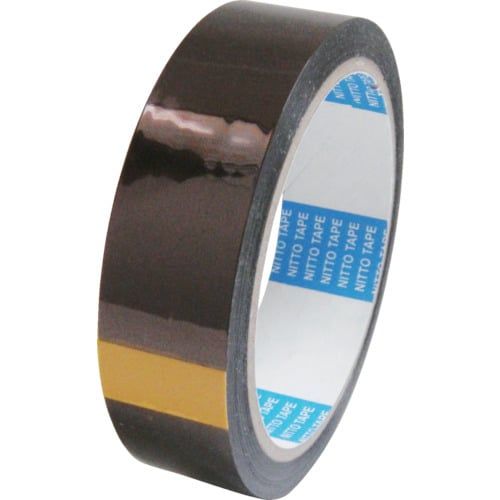

NITTO P221X3/4
