MADE IN AMERICA

Đặc điểm

• It has excellent insulating properties and solvent resistance, and is also thin and easily adaptable.
• It has excellent abrasion resistance and is resistant to tearing.
• The adhesive used is silicone-based, and it can be easily removed even after heat has been applied.

Ứng dụng

• For bundling high heat-resistant electrical wires.
• For insulation of high-frequency motors and traction motors.
• For insulating the outer casing of small bobbin coils.
• For bundling magnetic wires.
• For masking circuit boards when using wave soldering.
• For masking during vacuum deposition and sputtering, and for temporarily fixing electronic components.

Thông số chi tiết

• UL Standard Class H (180°C)
• Continuous Use Temperature: 200°C
• Color: Urban
• Width (mm): 19
• Length (m): 33
• Thickness (mm): 0.095
• Adhesive Strength (N/10mm): 2.8
• Tensile Strength (N/10mm): 124
• Continuous Use Temperature (°C): 180
• Elongation (%): 90
• Heat Resistance Temperature (°C): 260°/180° (continuous use)

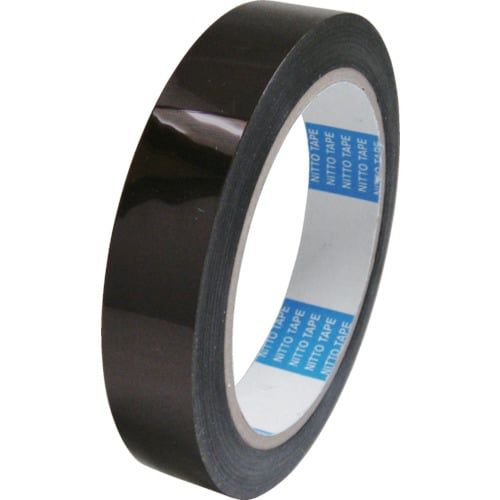

NITTO P222X3/4
