Đặc điểm

• It has excellent insulating properties and solvent resistance, and is also thin and easily adaptable.
• It has excellent abrasion resistance and is resistant to tearing.
• The adhesive used is a thermosetting acrylic adhesive that is solvent-resistant and less prone to outgassing.

Ứng dụng

• For bundling high heat-resistant electrical wires.
• For insulation of high-frequency motors and traction motors.
• For insulating the outer casing of small bobbin coils.
• For bundling magnetic wires.
• For insulating and bundling electronic components used in computers, communications equipment, aircraft, satellites, and military equipment.

Thông số chi tiết

• Color: Urban
• Width (mm): 12.7
• Length (m): 33
• Thickness (mm): 0.074
• Adhesive strength (N/10mm): 4.0
• Tensile strength (N/10mm): 63
• Operating temperature range (°C): 155
• Compliance standard: UL Class F (150°C)
• Elongation (%): 85
• Continuous operating temperature (°C): 155

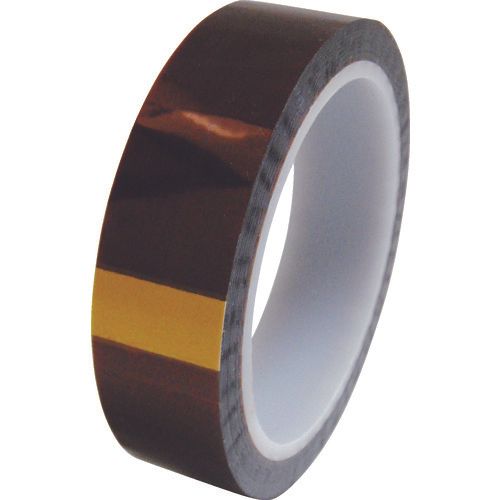

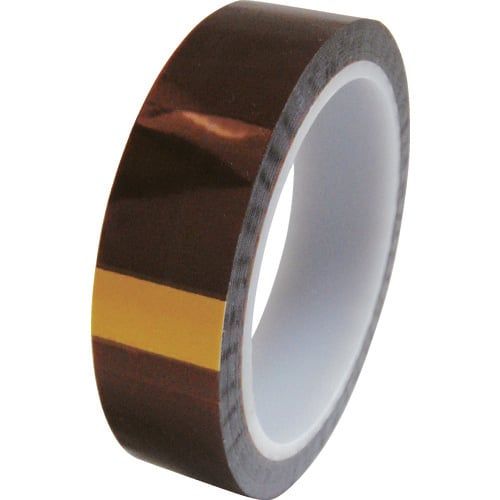

NITTO P224X1/2
