MADE IN JAPAN

Đặc điểm

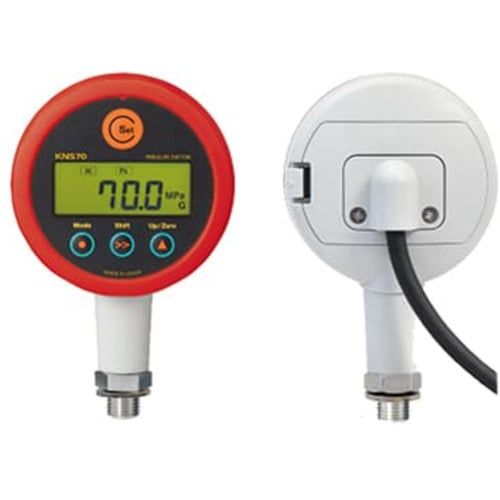

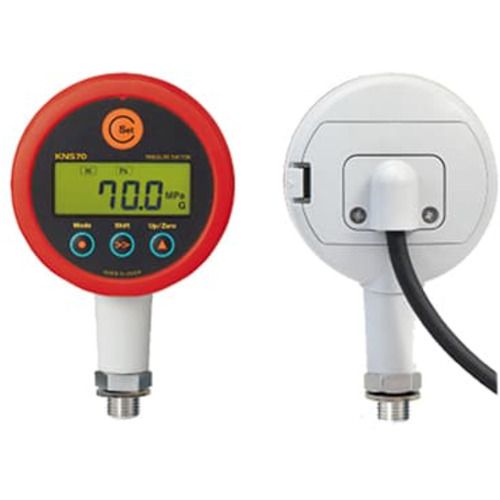

• This is a digital pressure switch that controls relay ON/OFF according to comparison behavior.
• The comparison operation allows for settings such as delay, polarity inversion, and ON/OFF delay, enabling switching operation tailored to your needs.
• The overall pressure accuracy is a high ±0.5%FS, and it can handle ultra-high pressure ranges up to 70MPa.
• You can set the sampling rate from 10 msec (0.01 seconds) to 600 seconds.
• It is possible to activate the switch the moment the set pressure is reached, thereby turning off the motor and valve power supply.

Note

• Please ensure that the power supply does not exceed its rated capacity.
• Avoid using the same wiring as power lines, relays, solenoid valves, and other strong noise sources.
• Always turn off the power before performing any wiring work.
• To prevent damage from static electricity, be sure to discharge any static electricity from your body before touching this product.

Thông số chi tiết

• Connection port size: G1/4
• Set pressure (MPa): 0-70
• Operating pressure (MPa): 0-70
• Pressure resistance (MPa): 140
• Width (mm): φ80
• Depth (mm): 59
• Height (mm): 128.4
• Fluid used: Gases and liquids (media that do not corrode SUS316L)
• Fluid temperature (°C): -20 to 60

NPA KNS-70-A
