MADE IN JAPAN

Đặc điểm

• Height adjustment via screws and hydraulic pressure can be controlled with a single unit.

Ứng dụng

• powder molding, powder molding
• For research and development fields in companies, universities, and research institutions.
• For more precise dual-axis molding.
• When using NPA dies, biaxial molding is possible without the need for preliminary molding.

Thông số chi tiết

• Width (mm): 200
• Open height (mm): 75-250
• Stroke (mm): 75
• Depth (mm): 540
• Height (mm): 1101
• Power consumption (W): 350
• Voltage (V): 100
• Power supply (V): 100
• Capacity kN (t): 200 (20)
• Width (mm): 600
• Cylinder lowering speed (mm/sec): No load: 11.5 Load: 1.1

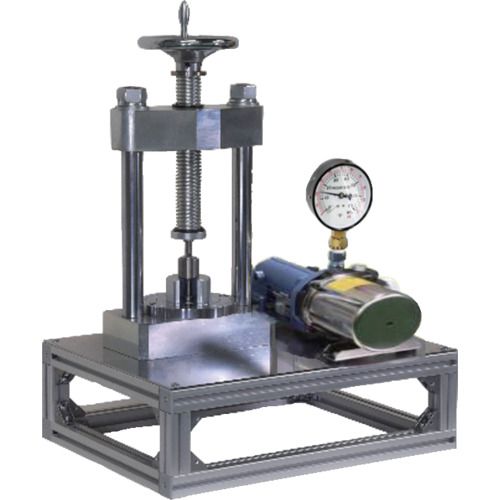

NPA HSP-200A
