MADE IN JAPAN

Đặc điểm

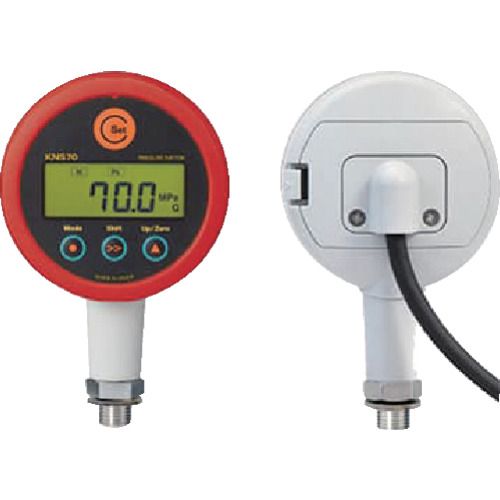

• This is a digital pressure switch that controls the motor/valve of an electric hydraulic pump.

Ứng dụng

• It Đặc điểm a flexible display, allowing you to adjust the screen to a comfortable viewing position without any tools.

Thông số chi tiết

• Depth (mm): 59
• Height (mm): 128.4
• Operating pressure (MPa): 0-35
• Fluid used: Gases and liquids (media that do not corrode SUS316L)
• Connection port size: G 1/4 (male)
• Set pressure (MPa): 0-35
• Pressure resistance (MPa): 140
• Power supply (V): AC85-264
• Width (mm): 80
• Sampling rate: 0.01 sec to 600 sec
• Display: Display digits: Digital full 4-digit LCD display, Other: Hi, Pk,
• Operating temperature range (°C): -10 to 60 (temperature guaranteed range)
• Operating humidity range: 35-85%RH (non-condensing)
• Power supply: AC85-264V, 47-63Hz/5W

NPA KNS70-35MPA
