MADE IN JAPAN

Đặc điểm

• The environmental box (test chamber) can be easily replaced and moved depending on the application.
• With its three functions—temperature control, humidity control, and cleanliness (customizable)—it can handle any localized space.
• Because it uses a circulating air circuit, it is easy to create environments ranging from low to high temperatures.

Thông số chi tiết

• Circulating type
• Power supply (V): Three-phase 200±10% (50/60)
• Air volume (m³/min): 10-13 (50Hz) / 10-15 (60Hz)
• Width (mm): 753
• Depth (mm): 618
• Height (mm): 1374
• Settable temperature range (°C): 5-70 (15-70 with humidity control)
• Settable humidity range (%): 30-90 (at 40-60°C)
• Cooling capacity (kW): 3.25
• Temperature setting range (°C): 5-70 (15-70 with humidity control)
• Humidity control range (%): 30-90 (at 40-60°C)
• Maximum operating power consumption (kW): 19.0

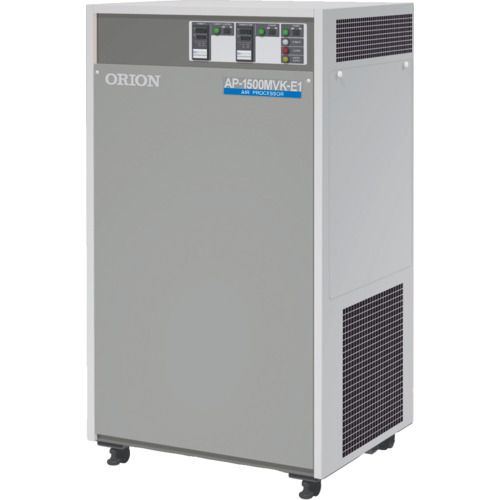

ORION AP-1500MVK-E1
