MADE IN JAPAN

Đặc điểm

• Because it is an oil-free system, it does not contain oil, so it will not contaminate the work environment or products with oil, whether used for vacuum applications (vacuum type) or exhaust applications (blower type).
• The three-phase 200V version comes with CE marking.
• It's quieter than the previous series.
• The use of a self-lubricating special carbon blade provides superior durability.

Ứng dụng

• printing machine.
• Bookbinding machine.

Thông số chi tiết

• Blower type,
• no thermal protector.
• Custom-made for different voltages, available from a single unit .
• Exhaust speed (L/min) 50/60Hz: 1130/1350.
• Ultimate pressure (Pa): 6000.
• Intake port diameter (mm): Rc 1.
• Power supply (V): Three-phase 200.
• Exhaust pressure (Pa): 60 x 10³.
• Overall width (mm): 335.
• Overall length (mm): 801.
• Overall height (mm): 412.
• Noise level (dB): 68.
• Ultimate pressure (Pa) 50/60Hz: 60 x 10³/60 x 10³

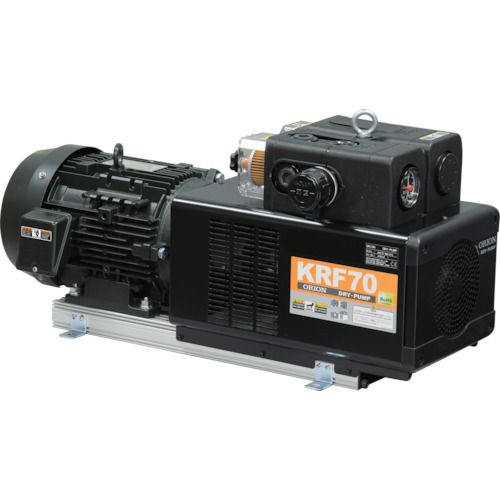

ORION KRF70-B-01B
