MADE IN JAPAN

Đặc điểm

• Because it is an oil-free system, it does not contain oil, so it will not contaminate the work environment or products with oil, whether used for vacuum applications (vacuum type) or exhaust applications (blower type).
• The three-phase 200V version comes with CE marking.
• This product complies with the RoHS directive.
• It's quieter than the previous series.
• The use of a self-lubricating special carbon blade provides superior durability.

Ứng dụng

• printing machine.
• Bookbinding machine.
• Automatic machine.
• Liquid stirring.

Thông số chi tiết

• Blower specifications without thermal protector,
• Blower
• specifications without thermal protector,
• custom-made for different voltages (single unit ). Exhaust speed (L/min) 50/60Hz: 63/75. Intake port diameter (mm): Rc3/8. Exhaust port diameter (mm): Rc3/8. Power supply (V): Single-phase 100, 200. Exhaust pressure (Pa): 50 x 10³. Overall dimensions: Width (mm): 264, Overall dimensions (mm): 350, Overall dimensions (mm): 292. Noise level (dB): 64. Ultimate pressure (Pa) 50/60Hz: 50 x 10³/50 x 10³
• custom-made for different voltages (single unit
• ). Exhaust speed (L/min) 50/60Hz: 63/75.
• Intake port diameter (mm): Rc3/8.
• Exhaust port diameter (mm): Rc3/8.
• Power supply (V): Single-phase 100, 200.
• Exhaust pressure (Pa): 50 x 10³.
• Overall dimensions: Width (mm): 264,
• Overall dimensions (mm): 350,
• Overall dimensions (mm): 292.
• Noise level (dB): 64.
• Ultimate pressure (Pa) 50/60Hz: 50 x 10³/50 x 10³

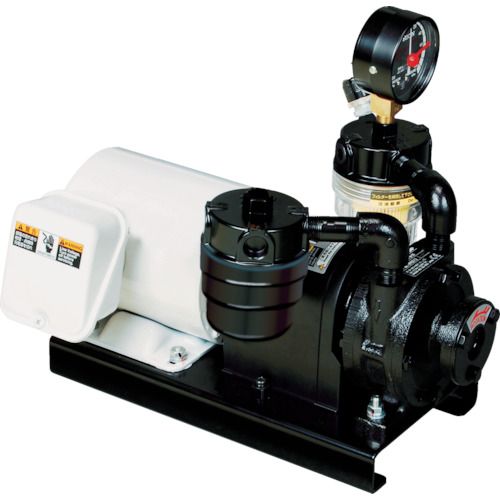

ORION KRF04A-B-02A
