MADE IN JAPAN

Đặc điểm

• Because it is an oil-free system, it does not contain oil, so it will not contaminate the work environment or products with oil, whether used for vacuum applications (vacuum type) or exhaust applications (blower type).
• The three-phase 200V version comes with CE marking.
• This product complies with the RoHS directive.
• It's quieter than the previous series.
• The use of a self-lubricating special carbon blade provides superior durability.

Ứng dụng

• printing machine.
• Bookbinding machine.
• Automatic machine.
• Chip mounter.
• Vacuum source for packaging machinery, etc.

Thông số chi tiết

• Vacuum type without thermal protector. Custom-made
• versions
• available for different voltages.
• Exhaust speed (L/min) 50/60Hz: 405/480
• Ultimate pressure (Pa): 8600/9000
• Intake port diameter (mm): Rc 3/4
• Power supply (V): Single-phase 100, 200
• Overall dimensions Width (mm): 564
• Overall dimensions Length (mm): 254
• Overall dimensions Height (mm): 257
• Noise level (dB): 64
• Ultimate pressure (Pa) 50/60Hz: 86×10³/90×10³

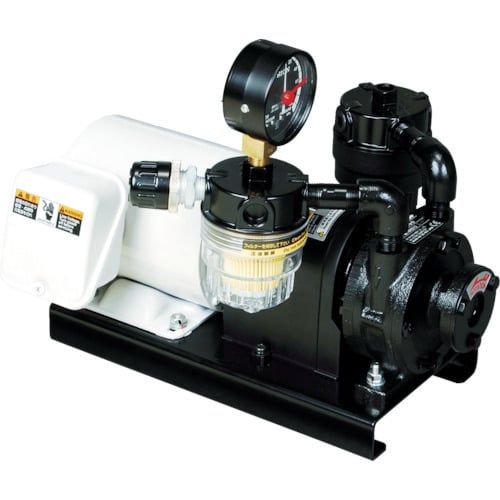

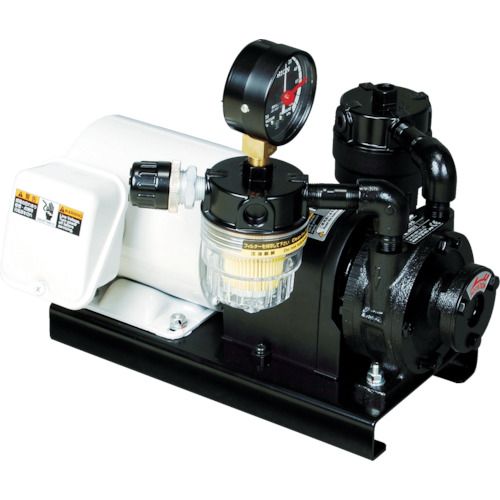

ORION KRF25A-V-02
