MADE IN JAPAN

Đặc điểm

• This is an energy-saving cooling system that does not use a compressor.
• Because it does not use CFC refrigerants, it is exempt from the CFC Emission Control Law.
• Because the high-pressure pump is inverter-driven (same capacity at 50/60Hz), it performs at the same capacity even in areas with different frequencies.

Ứng dụng

• Cooling of engineering laser equipment, X-ray tubes, equipment cooling in cleanrooms (utilizing cooling systems installed in the room), semiconductor manufacturing processes, etc.

Thông số chi tiết

• Liquid cooling circulation system without compressor (refrigeration unit)
• Ambient temperature range: 10-35°C
• Operating liquid temperature range: 20-35°C
• Temperature control accuracy: ±1.0°C (when load is stable)
• Width (mm): 377
• Depth (mm): 590
• Height (mm): 940
• Operating temperature range (°C): 10-35
• Power supply (V): Three-phase 200±10% (50/60Hz)
• Temperature control range (°C): 20-35
• Capacity (L): Approx. 30L
• Cooling capacity (kW): 30
• Power consumption (kW): 1.1

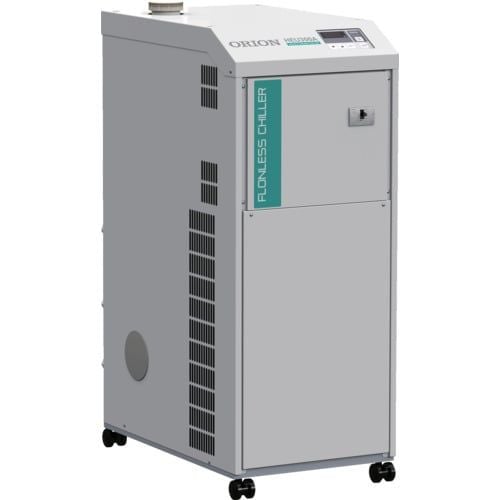

ORION HEU300A
