MADE IN JAPAN

Đặc điểm

• By placing the capacitors on the top three sides of the product, variations in intake airflow are reduced, significantly improving operating efficiency.
• Compared to conventional models, the product's footprint has been reduced by 42%.
• Equipped with TESC (THREE ECO SPEED CONTROL), it controls three motor speeds. This allows for operation with the minimum necessary power consumption, contributing to a reduction in CO2 emissions.
• Various settings and operating status can be easily viewed and intuitively operated by touching the screen. Switching between English and Chinese is also possible.
• Low operating noise has been achieved through improved airflow from the cooling fan and optimized control of the refrigeration cycle.

Ứng dụng

• For cooling and temperature control of equipment such as fiber lasers, MRI machines, exposure equipment, high-frequency induction heating devices, plasma welding machines, and ICP analyzers.

Thông số chi tiết

• Water-cooled type
• . Ambient temperature range: 2-45°C (water-cooled).
• Operating liquid temperature range: 5-35°C .
• Temperature control accuracy: ±0.1°C.
• Width (mm): 555.
• Depth (mm): 775.
• Height (mm): 1650.
• Operating temperature range (°C): 2-45.
• Power supply (V): Three-phase 200-220 ±10% (50/60).
• Cooling capacity (W): 16000.
• Temperature control range (°C): 2-45.
• Power consumption (W): 4800.
• Cooling capacity (W) (50/60Hz): 16000/16000.
• Cooling capacity (W) (50Hz): 14100.
• Casters: None.
• Cooling capacity (kW): 16.0.
• Statutory refrigeration tons: 1.59.
• Heating capacity (kW): 3.0.
• Flow rate range (L/min): 25-70.
• Actual tank capacity (L): Approx. 60.
• Power consumption (kW): 4.8

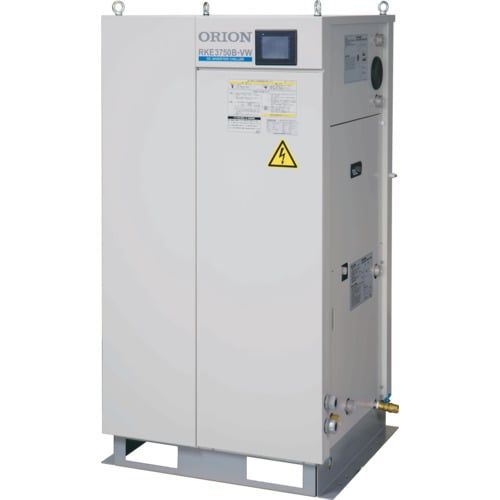

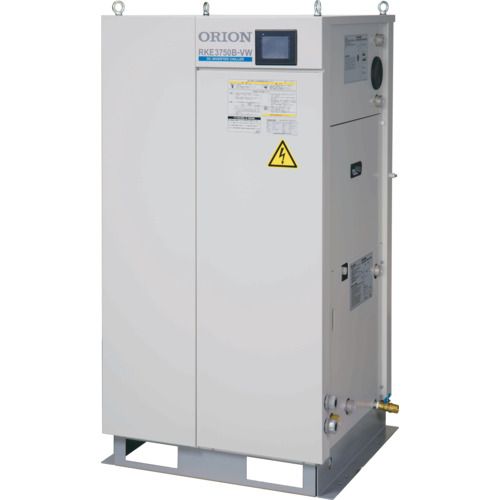

ORION RKE3750C-VW-G1
