MADE IN JAPAN

Đặc điểm

• It uses non-CFC refrigerant R1234yf (HFO).
• This significantly reduces the environmental impact.
• It is an environmentally friendly refrigerant with a zero ozone depletion potential (ODP).
• Equipped with TESC (Technical Energy Control System), it is possible to operate with minimal power consumption by optimally controlling the rotation speed of the three motors.

Ứng dụng

• For cooling industrial machinery such as welding machines, crushers, and agitators.

Thông số chi tiết

• Fully enclosed rotary type (inverter driven)
• Operating ambient temperature range: -5 to 45°C (air-cooled), 2 to 45°C (water-cooled)
• Operating fluid temperature range: 5 to 40°C
• Temperature control accuracy: ±0.1°C
• Width (mm): 398
• Depth (mm): 695
• Height (mm): 940
• Operating temperature range (°C): 5 to 40
• Maximum flow rate (L/min) (50/60Hz): 30
• Power supply (V): Three-phase 200 ±10% (50/60) 220±10%(60)
• Temperature control range (°C): 5-40
• Power consumption (W): 1600
• Cooling capacity (W) (50Hz): 3.3
• Cooling capacity (W) (50Hz/at 10°C): 2.3
• Cooling capacity (W) (50Hz/at 20°C): 3.3
• Power consumption (W) (50/60Hz): 1.6
• Temperature control accuracy (°C): ±0.1 (Energy saving mode setting: ±2.0°C)
• Capacity (L): Approx. 17
• Casters: Yes
• Cooling capacity (kW): 3.3
• Heating capacity (kW): 0.7
• Legal refrigeration tons: 0.42
• Power consumption (kW): 1.6

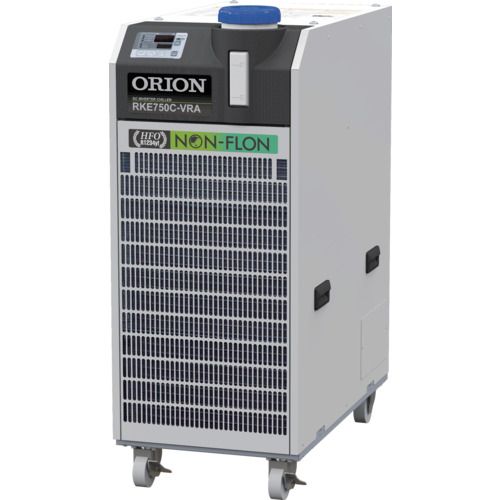

ORION RKE750C-VRA-G2
