MADE IN JAPAN

Đặc điểm

• It employs a coil-type heat exchanger that is less prone to clogging and can be disassembled.
• The control switches, temperature display, IN/OUT water piping, and drain port are all concentrated on the front panel, improving ease of installation and layout.
• By lowering the height to the absolute minimum, a variety of installation layouts are possible.

Thông số chi tiết

• Air-cooled type.
• Ambient temperature range: 5-40°C.
• Operating temperature range (liquid temperature): 5-25°C.
• Width (mm): 454.
• Depth (mm): 375.
• Height (mm): 295.
• Operating temperature range (°C): 5-25 (liquid temperature).
• Power supply (V): Three-phase 200±10% (50/60).
• Cooling capacity (W): 890/1020 (50/60Hz).
• Temperature control range (°C): 5-40.
• Power consumption (W): 450/500 (50/60Hz).
• Cooling capacity (kW) (50/60Hz): 0.89/1.02
• . Statutory refrigeration tons (50/60Hz): 0.14/0.17 .
• Power consumption (kW) (50/60Hz): 0.45/0.50

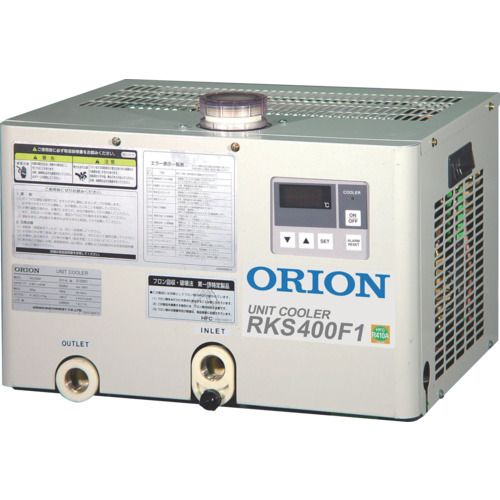

ORION RKS400F1
