MADE IN JAPAN

Đặc điểm

• By employing a highly efficient rotor, it achieves high flow rates while saving energy.
• The pump chamber is oil-free and clean, and its non-contact design further enhances quietness, significantly reducing unpleasant noise levels.

Ứng dụng

• Electronic component factory. Can manufacturing plant. Vacuum forming machine. Extrusion molding machine. For printing and bookbinding, etc.

Thông số chi tiết

• Flow rate: 29.7 m³/h
• No thermal protector
• Custom-made versions available for different voltages (one unit only)
• Exhaust speed (L/min) 50/60Hz: -/500
• Ultimate pressure (Pa): 100 × 10³
• Inlet diameter (mm): NPSC1/2
• Power supply (V): Three-phase 200/220/230
• Overall width (mm
• ): 534 Overall length (mm): 670
• Overall height (mm): 369
• Body dimensions: Overall width
• (mm): 534 Overall dimensions: Overall length (mm): 670
• Overall dimensions: Overall height (mm): 369
• Noise level (dB): 75
• Ultimate pressure (Pa) 50/60Hz: -/100 × 10³
• Inlet diameter: NPSC1/2
• Exhaust speed (L/min): 500
• Frequency (Hz): 60

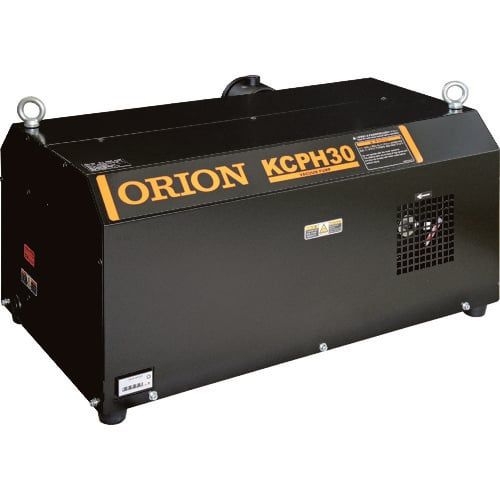

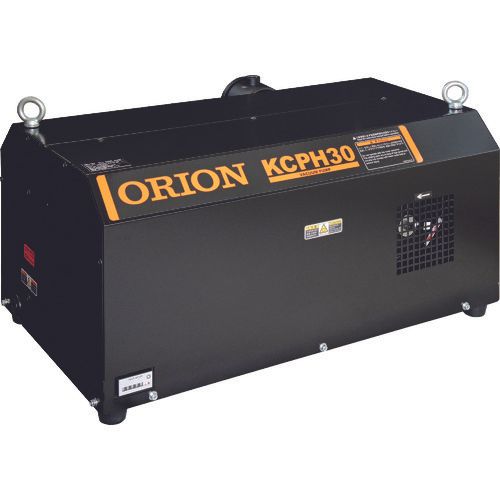

ORION KCPH30-V-01A-60
