MADE IN JAPAN

Đặc điểm

• We achieved both energy savings of over 30% and high temperature control accuracy of ±0.1℃ through our compressor rotation control system.
• With a liquid temperature control range of 5 to 35°C, it can accommodate a wide range of applications.

Ứng dụng

• For cooling and temperature control of equipment such as fiber lasers, MRI machines, exposure equipment, high-frequency induction heating devices, plasma welding machines, and ICP analyzers.

Thông số chi tiết

• Temperature adjustment accuracy: ±0.1℃ (under load, ambient temperature, and stable power supply)
• Operating ambient temperature range: 2 to 43℃
• Water tank capacity: Approx. 20L
• Maximum head (50/60Hz): 50m
• Custom-made versions for different voltages are available (consultation required)
• Power cord length: 3m
• With casters
• Connection port diameter: RC1/2
• Width (mm): 530
• Depth (mm): 970
• Height (mm): 1080
• Operating temperature range (℃): 2 to 43
• Maximum flow rate (L/min) (50/60Hz): 50/65
• Power supply (V): Three-phase 200
• Temperature adjustment range (℃): 5 to 35
• Power consumption (W): 3500/3700
• ​​Cooling capacity (W) (50/60Hz): 10400
• Capacity (L): 20
• Minimum circulation rate (L/min) (50/60Hz): 28/43
• Type: Water-cooled

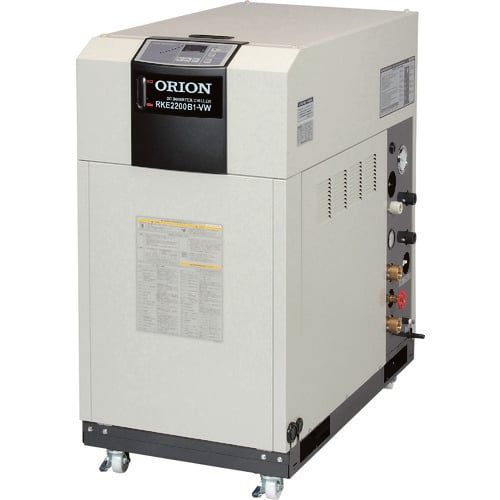

ORION RKE2200B1-VW-G2
