MADE IN JAPAN

Đặc điểm

• CAD data is available on the official website of Nippon Pisco Co., Ltd.
• This is a one-touch connector that can be used in chemical atmospheres.

Note

• When using water or other liquids, please ensure that the surge pressure is kept below the maximum operating pressure.
• Standard tap water from within Japan, free from foreign matter and contaminants, can be used. For other types of water, please verify through actual equipment testing.
• When using water or other liquids, be sure to use the insert ring (WR).
• For chemicals, mixed gases, etc., suitability according to Nippon Pisco Co., Ltd. specifications may vary depending on the usage conditions, so please check before use.

Thông số chi tiết

• Corrosion-resistant SUS304 quick-connect
• fitting, RoHS2 compliant .
• Suitable tube outer diameter (mm): φ10.
• Connection port size: R1/4.
• Hexagonal opposite side (mm): 17.
• Maximum operating pressure (MPa): 1.0.
• Applicable fluids: Air, water, and other chemicals.
• Operating pressure: -100kPa.
• Operating temperature range (°C): 0 to 60 (no freezing).
• Shape: Straight.
• Applicable thread size: R1/4

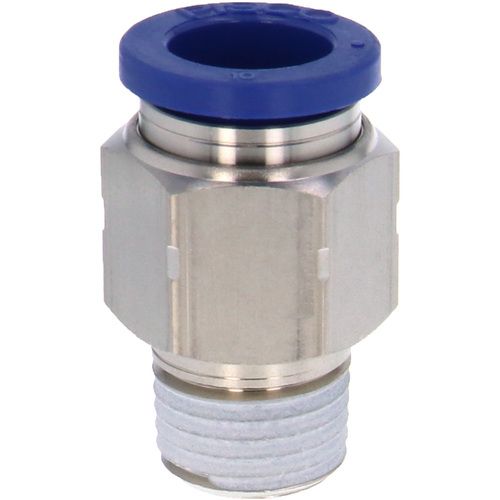

PISCO PC10-02SUS
