MADE IN JAPAN

Đặc điểm

• Ideal for oscillating and rotating parts.
• Bearings are used in the rotating parts.

Ứng dụng

• Reduces the load on oscillating and movable parts of robots and other devices.

Thông số chi tiết

• Operating temperature range: 0 to 60°C (no freezing)
• Maximum operating pressure: 1 MPa
• Operating vacuum pressure: -100 kPa
• Compatible tube outer diameter D (mm): 12
• Connection port size: R1/2
• Hexagonal opposite side (mm): 24
• Maximum operating pressure (MPa): 1.0
• Fluid used: Air
• Allowable rotation speed (min⁻¹): 250
• Operating pressure: -100 kPa to 1.0 MPa
• Operating temperature range (°C): 0 to 60 (no freezing)
• Built-in bearing type

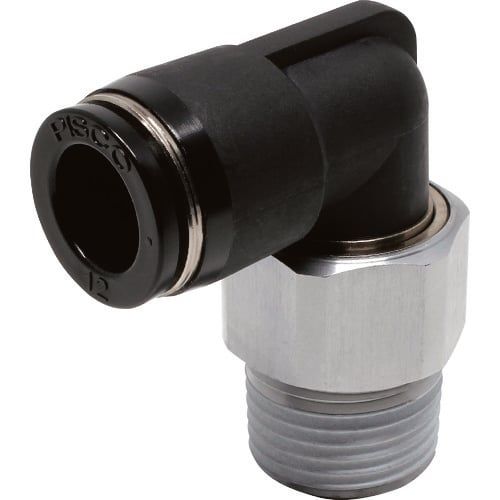

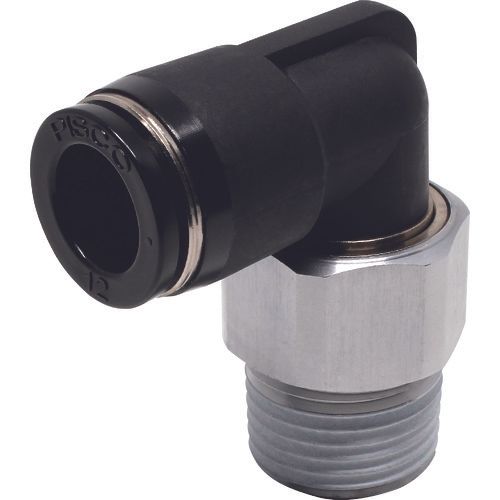

PISCO RL12-04
