MADE IN JAPAN

Đặc điểm

• Ideal for situations requiring high strength or use in chemical atmospheres.
• The metal body is made of SUS304 stainless steel.
• The seal material used is FKM.
• CAD data is available on the official website of Nippon Pisco Co., Ltd.

Note

• When using water or other liquids, please ensure that the surge pressure is kept below the maximum operating pressure.
• Standard tap water from within Japan, free from foreign matter and contaminants, can be used. For other types of water, please verify through actual equipment testing.
• When using water or other liquids, be sure to use the insert ring (WR).
• For chemicals, mixed gases, etc., suitability according to Nippon Pisco Co., Ltd. specifications may vary depending on the usage conditions, so please check before use.

Thông số chi tiết

• Uses FKM for the sealing rubber material, suitable for low-concentration ozone applications.
• Uses SUS304 metal material.
• Operating pressure range: -100kPa to 1.0MPa.
• RoHS2 compliant.
• Suitable tube outer diameter (mm): 10.
• Connection port size: R3/8
• . Hexagonal opposite side (mm): 17.
• Maximum operating pressure (MPa): 1.0.
• Applicable fluids: air, water, and other chemicals (with conditions).
• Operating temperature range (°C): 0 to 60 (no freezing).
• No copper-based metal materials are used in the flow path.

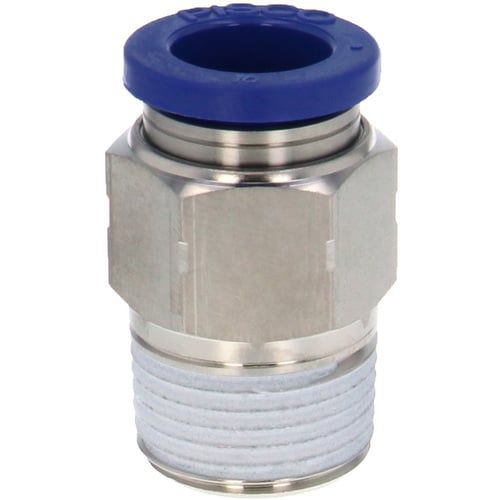

PISCO PC10-03SUS
