MADE IN JAPAN

Đặc điểm

• In addition to the main body, the release ring is also made of brass, making it flame-retardant and spatter-resistant.
• The coverless type is recommended for high temperature environments or environments where strength is required.
• Conductivity is ensured when combined with an anti-static tube (UE).
• For environments where spatter occurs, we recommend the covered type.
• A release ring cover (sold separately) is also available to prevent malfunction of the release ring.
• The seal rubber material can be changed.
• RoHS2 compliant.
• CAD data is available on the official website of Nippon Pisco Corporation.

Note

• When using water or heat transfer oil, keep surge pressure below the maximum operating pressure.
• Ordinary tap water in Japan that is free of foreign matter or contaminants can be used. If using other water, please check the actual equipment for quality.
• When using water or heat transfer oil, be sure to use the insert ring (WR).
• When using at temperatures above 120°C, the sealing properties of the Sealock may be compromised, so be sure to use sealing tape on the threads.

Thông số chi tiết

• Fluids: Air, water, thermal oil (conditions apply*).
• Operating pressure range: -100 kPa to 1.0 MPa.
• Operating temperature range: 0 to 150°C (non-freezing). When using above 120°C, the sealability of the Sealock may be compromised. Be sure to use sealing tape on the threads.
• When using water or thermal oil, keep surge pressure below the maximum operating pressure.
• Regular tap water in Japan, free of foreign matter or contaminants, can be used. For other types of water, please verify the actual product.
• When using water or thermal oil, be sure to use an insert ring (WR).
• Compatible tube outer diameter (mm): 10.
• Connection size: R1/4.
• Hexagonal width across flats (mm): 6.
• Maximum operating pressure (MPa): 1.0.
• Fluids: Air, water, thermal oil.
• Operating pressure: -100 kPa to 1.0 MPa.
• Operating temperature range (°C): 0 to 150 (non-freezing).

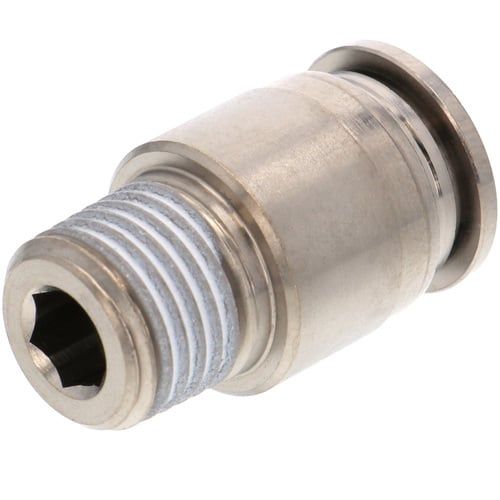

• Shape: Hexagonal socket straight, no cover.

PISCO KOC10-02-1-F
