MADE IN JAPAN

Đặc điểm

• CAD data is available on the official website of Nippon Pisco Co., Ltd.
• This product complies with RoHS2.
• It can be directly attached to the pad holder of a vacuum pad.
• To meet the need for low flow rates, we also offer small-diameter nozzles: φ0.3mm and φ0.4mm.

Thông số chi tiết

• Suitable for atmospheric ventilation.
• Tube outer diameter D (mm): Vacuum port size: R1/4, Air supply port size: φ10
• Nozzle diameter (mm): 2.0
• Fluid used: Air
• Operating pressure (MPa): 0.15 to 0.7
• Operating temperature range (°C): 0 to 60 (no freezing)
• Achievable vacuum degree (kPa): -66
• Suction flow rate (L/min (ANR)): 180
• Rated supply pressure (MPa): 0.5
• Shape: Directly mounted vacuum pad type

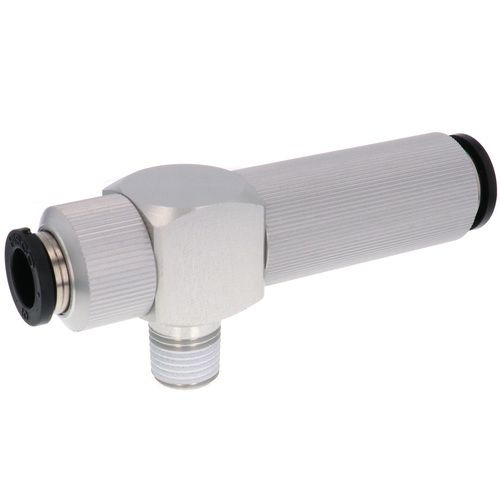

PISCO VCL20-0210C
