MADE IN JAPAN

Đặc điểm

• It is equipped with a capacitive detection sensor that operates only when water is present.
• Because it uses capacitance to determine the situation, it is less prone to malfunctions due to dirt adhering to the sensor surface.
• The design, powered by a microcontroller, makes it less susceptible to the effects of waves, rain, and other elements.
• The pump itself thinks about and controls the water level according to the situation.
• By shortening the time spent without water and reducing the frequency of starting the unit, noise and wasted power consumption during periods of low water levels are minimized, extending the product's lifespan.
• Its compact design allows for use in confined spaces. By routing only the sensor wires externally and housing all control components within the head cover, it boasts a shock-resistant and easy-to-handle structure.
• Utilizing contactless semiconductor relays, it boasts a long lifespan even in environments where frequent switching is required.

Ứng dụng

• For drainage in civil engineering and construction work.
• For draining rainwater, spring water, and stagnant water.
• For water supply and drainage in agriculture and industry.

Thông số chi tiết

• Automatic operation type.
• Custom-made versions available for different voltages.
• Discharge volume (L/min): 500
• Total head (m): 18
• Frequency (Hz): 50
• Bore diameter (mm): 80
• Power supply (V): Three-phase 200
• Current (A): 15.6
• Output (kW): 3.7
• Overall width (mm): 290
• Overall length (mm): 290
• Overall height (mm): 622
• Total head (m) (50Hz/60Hz): 18
• Power cord length (m): 10

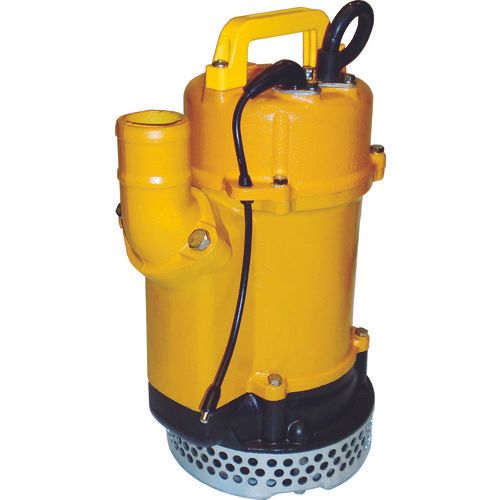

SAKURAGAWA UEX-253B-50HZ
