Đặc điểm

• It has a vortex structure that is resistant to clogging and entanglement.
• It is easy to disassemble and assemble, and maintenance is simple.
• The impeller is made of wear-resistant FCD450, and special synthetic rubber is used in key parts, resulting in a wear-resistant design.

Ứng dụng

• For drainage in civil engineering and construction work.
• For draining rainwater, spring water, and stagnant water.
• For water supply and drainage in agriculture and industry.

Thông số chi tiết

• Non-automatic operation type.
• Custom-made versions available for different voltages.
• Power cord length: 5m.
• Discharge volume (L/min): 100.
• Total head (m): 8. Frequency
• (Hz): 60. Bore
• diameter (mm): 50.
• Power supply (V): Single-phase 100.
• Current (A): 6.2.
• Output (kW): 0.4 . Overall width
• (mm): 194.
• Overall length (mm): 194.
• Overall height (mm): 364.
• Total head (m) (50Hz/60Hz): 8.
• Power cord length (m): 5

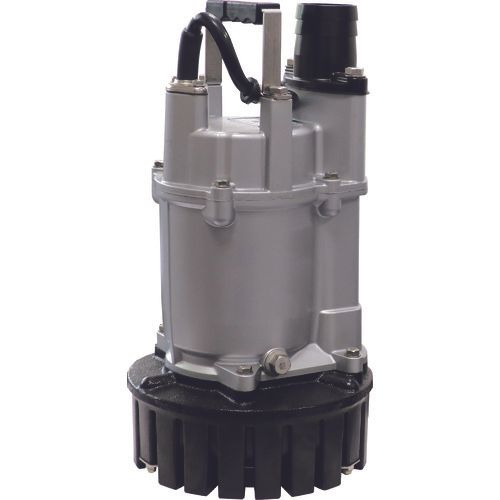

SAKURAGAWA US-40J-60HZ
