MADE IN SWEDEN

Đặc điểm

• The sharp cutting edge, combined with the ultrafine particle base material, high high-temperature hardness, and excellent resistance to plastic deformation, results in superior cutting edge reliability.
• It achieves uniform flank wear and high machining performance.

Ứng dụng

• For general turning of stainless steel.
• For general turning of heat-resistant alloys.

Thông số chi tiết

• PVD thin film coating material
• suitable for machining: MS
• Chip shape: Square
• Cutting edge effective length LE (mm): 9.125
• Inscribed circle IC (mm): 9.525
• Thickness S (mm): 3.96875
• Corner radius RE (mm): 0.3969
• Hole diameter D1 (mm): 4.4
• Main relief angle AN (°): 7
• Coating: TiAlN + TiAlN
• Machining type: Finishing

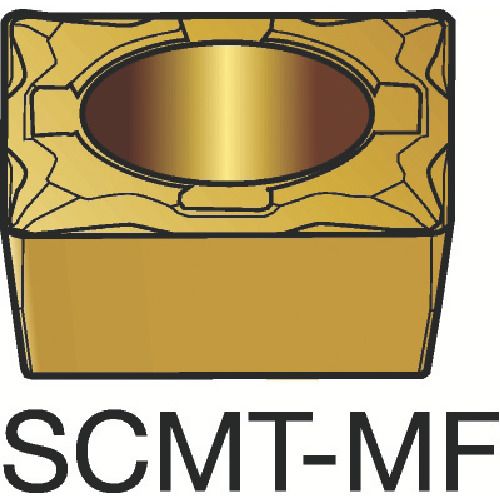

SANDVIK SCMT 09 T3 04-MF
