MADE IN SWEDEN

Đặc điểm

• It is compatible with most steel turning operations.
• The new base material, which combines resistance to plastic deformation with good toughness, improves reliability. Stability is further enhanced by increasing the cobalt content towards the surface.

Ứng dụng

• For turning steel.
• For rough to finish machining.

Thông số chi tiết

• CVD coated material
• suitable for machining: PK
• Chip shape: Triangular
• Cutting edge effective length LE (mm): 16.0978
• Inscribed circle IC (mm): 9.525
• Thickness S (mm): 4.7625
• Corner radius RE (mm): 0.3969
• Hole diameter D1 (mm): 3.81
• Main relief angle AN (°): 0
• Coating: TiCN + Al2O3 + TiN
• Machining type: Finishing

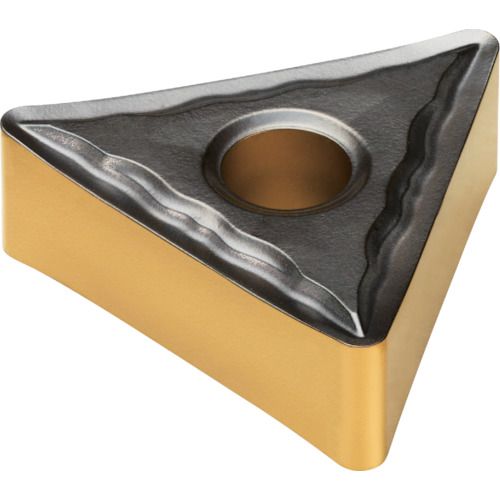

SANDVIK TNMG 16 04 04-MF
