MADE IN JAPAN

Đặc điểm

• This is a large fuel tank type.
• It employs a multi-generator that can handle any power source with a single unit.
• Three-phase and single-phase three-wire power can be output simultaneously from independent output terminals.
• Our high-quality electricity provides reliable power for electronic devices such as air conditioners and computers.
• It Đặc điểm an energy-saving eco mode function, which improves fuel efficiency compared to normal operation.
• The remaining capacity (how much more can be used) of each output power supply is displayed digitally.
• You can select the tripping sequence of three-phase and single-phase circuit breakers in the event of an overload.
• Equipped with a large fuel tank, it can operate for extended periods.

Ứng dụng

• For use in architecture, civil engineering, and facilities.
• At construction sites, it's possible to simultaneously supply power to three-phase motors and single-phase three-wire power to temporary offices.
• As an emergency power source, it can simultaneously back up power loads and single-phase three-wire lighting loads.
• Ideal for BCP (Business Continuity Plan) measures for various types of stores, offices, factories, and facilities.
• It is also ideal for emergency use in dairy farming, greenhouse cultivation, aquaculture, and other related fields.

Thông số chi tiết

• Oil guard included.
• Frequency: 50/60Hz compatible.
• Simultaneous output of three-phase and single-phase 3-wire (no switching required).
• Digital display of remaining power generation capacity. Energy-saving
• eco mode.
• Large fuel tank specifications.
• Rated voltage (V) 50/
• 60Hz: Three-phase 200/220, Single-phase 3-wire 100-200/110-220. Noise level (dB) 50/60Hz: 56/60.
• Tank capacity (L): 420.
• Fuel used: Diesel.
• Continuous operating time (h) 50/60Hz: 70/56 at 50% load.
• Overall length (mm): 1970. Overall
• width (mm): 880.
• Overall height (mm): 1630.
• Continuous operating time (h) (60Hz, 75% load operation): 39.
• Frequency (Hz): 50/60.
• Noise level (dB): 60.
• Rated AC output: Three-phase: 50/60kVA (50/60Hz) Single-phase 3-wire: 30/36kVA (50/60Hz)
• Rated AC output (kVA) 50/60Hz: Three-phase 50/60 Single-phase 3-wire 30/36

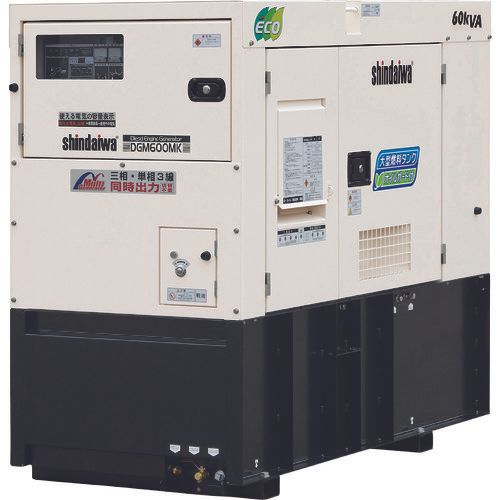

SHINDAIWA DGM600MK-P
