Đặc điểm

• This is a sliding miter saw specifically designed for cutting wood, capable of cutting up to 305mm in diameter.
• It's very convenient because you can use commercially available replacement blades depending on the material and application.
• Angled cuts and bevel cuts are also possible.

Ứng dụng

• For cutting long pieces of lumber, including bevel cuts.

Thông số chi tiết

• Saw blade dimensions: Outer diameter 190mm x Inner diameter 20mm x Number of teeth 72P
• Maximum cutting capacity: Depth 40mm x Width 305mm
• Rotation speed 5000min⁻¹
• Power consumption 1050W
• Current 12A
• Power cord length: 2m
• Weight 10kg
• Power supply: AC100V
• Cutting depth (mm): 40
• Cutting depth (mm) 45°: 20
• Cutting depth (mm) 90°: 40
• Compatible saw blade (mm) outer diameter: 190
• Compatible saw blade (mm) bore diameter: 20
• No-load rotation speed (min⁻¹): 5000
• Body dimensions (mm): 470 x 810 x 400
• Compatible saw blade (mm) blade thickness: 2
• Outer diameter (mm): 190
• Blade thickness (mm): 2
• Bore diameter (mm): 20
• Maximum operating speed (min⁻¹): 5000
• Number of teeth: 72
• Rated current (A): 12
• Power consumption (W): 1050
• Power cord length (m): 2
• Voltage (V): 100

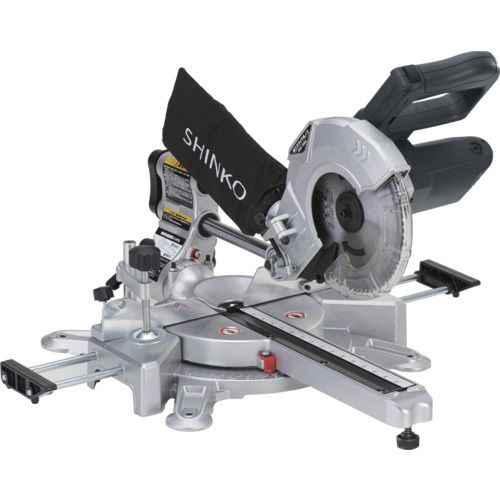

SHINKO SSC-190A
