MADE IN JAPAN

Đặc điểm

• It can be started even with 1-3 mm of residual water.
• The suction head can be inserted into narrow spaces. (Suction head outer diameter: 100mm)
• It powerfully sucks up and drains accumulated water.

Ứng dụng

• For draining accumulated water and groundwater at construction sites (especially foundation work sites).
• Drainage of stagnant water from pits, ditches, and manholes.
• Drainage of residual water from tanks with narrow openings.

Thông số chi tiết

• Non-automatic operation type
• Power cord length: 5m
• Discharge rate (L/min): 75
• Frequency (Hz): 60 Bore
• diameter (mm): 25
• Power supply (V): Single phase 100
• Current (A): 7.0
• Output (kW): 0.4
• Overall width (mm): 294
• Overall length (mm): 231
• Overall height (mm): 409
• Total head (m) (50Hz/60Hz): 8.4
• Current (A) 50/60Hz: 7.0
• Power cord length (m): 5

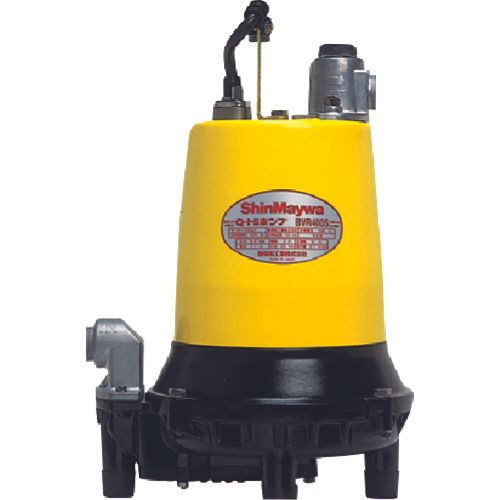

SHINMAYWA BVR401S-60HZ
