MADE IN JAPAN

Đặc điểm

• This can repair leaks from threaded connections in oil and gas pipes.
• The work can be done without stopping the fluid flow.
• It can be easily and safely installed with a single bolt.

Ứng dụng

• For repairing leaks of oil, gas, water, etc. from the threaded portion of general screw fittings.

Thông số chi tiết

• Compatible piping: Threaded malleable cast iron pipe fittings (JIS B2301), threaded drain pipe fittings (JIS B 2303)
• Fluid temperature: -20 to 80°C
• Operating pressure: Liquid/1.0 MPa, Gas/0.7 MPa
• Complies with Food Sanitation Law Nominal
• diameter A: 100
• Nominal diameter B: 4
• Casing width (mm): 54
• Tightening bolt hexagon size (mm): 17
• Compatible fluids: Oil, gas

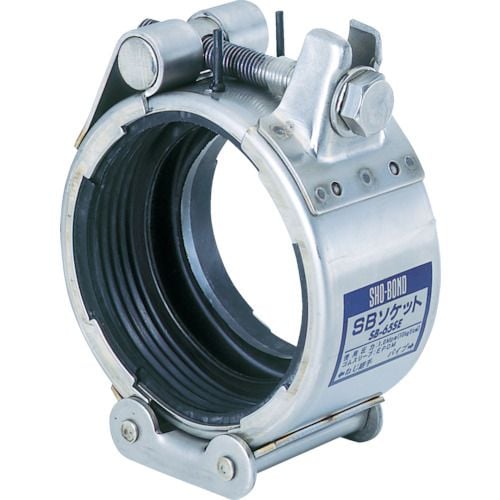

SHO-BOND SB-100SN
