MADE IN JAPAN

Đặc điểm

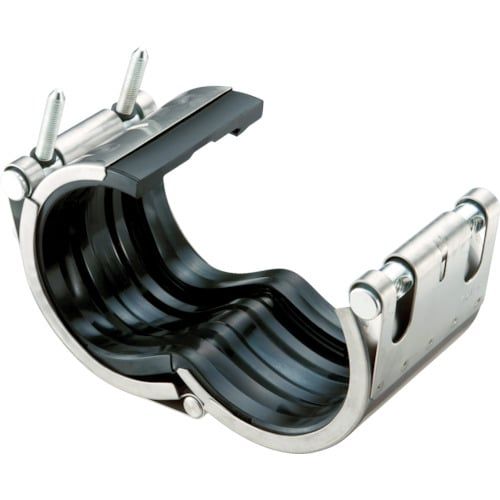

• Repair product for leaks in welded joints, corrosion cracks, and pinholes in straight pipes. Can be installed without shutting off the water supply.
• The work can be done without stopping the fluid flow.
• Its lightweight, one-piece construction ensures that no parts will fall off, allowing for safe installation.

Ứng dụng

• For repairing various types of piping.

Thông số chi tiết

• Suitable piping: Carbon steel pipes for piping / VLP / PLP / Stainless steel pipes / PE pipes of steel pipe size
• Fluid temperature: -20 to 80℃
• Operating pressure: Liquid / 1.0 MPa, Gases and other gases / 0.7 MPa Nominal
• diameter A: 150 Nominal
• diameter B: 6
• Suitable pipe outer diameter (mm): 165.2
• Casing width (mm): 106.0
• Rubber lip spacing (mm): 60
• Tightening bolt hex socket size (mm): 8
• Standard torque value (N・m): 20
• Suitable fluids: Oil, gas, water

SHO-BOND C-150NC
