MADE IN JAPAN

Đặc điểm

• This system allows for repairs to pinholes in butt welds between straight pipes, as well as leaks from corrosion cracks, without interrupting the water supply.
• The work can be done without stopping the fluid flow.
• Its lightweight, one-piece construction ensures that no parts will fall off, allowing for safe installation.

Ứng dụng

• For repairing various types of piping.
• For water/hot water

Thông số chi tiết

• Suitable piping: Carbon steel pipes for piping / VLP / PLP / Stainless steel pipes / PE pipes of steel pipe size
• Fluid temperature: -30 to 100℃
• Operating pressure: Liquid / 1.0 MPa, Gases such as air / 0.7 MPa
• Japan Water Works Association certified product
• Nominal diameter A: 150
• Nominal diameter B: 6
• Suitable pipe outer diameter (mm): 165.2
• Casing width (mm): 106.0
• Rubber lip spacing (mm): 60
• Tightening bolt hex socket size (mm): 8
• Standard torque value (N・m): 20
• Suitable fluids: Water, hot water, air, chemicals

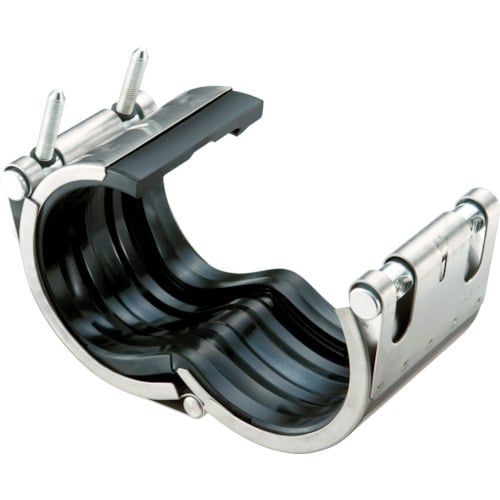

SHO-BOND C-150EC
