MADE IN JAPAN

Đặc điểm

• No welding or threading is required; pipes can be connected with just a torque wrench.
• The grip ring and sealing rubber provide high resistance to pipe detachment and excellent sealing performance.
• Reducing work time can lower labor costs.

Ứng dụng

• For connecting various types of pipes, such as oil, gas, and water supply lines.

Thông số chi tiết

• Suitable piping: Carbon steel pipes for piping / VLP / PLP / Stainless steel pipes
• Fluid temperature: -20 to 80℃
• Operating pressure: Liquid / Steel pipe 2.0MPa, SUS pipe 1.6MPa Gas / 1.0MPa
• Japan Water Works Association certified product
• Nominal diameter A: 20
• Nominal diameter B: 3/4
• Suitable pipe outer diameter (mm): 27.2
• Casing width (mm): 47.3
• Rubber lip spacing (mm): 18
• Tightening bolt hex socket size (mm): 5
• Standard torque value (N・m): 6
• Suitable fluids: Oil, gas, water

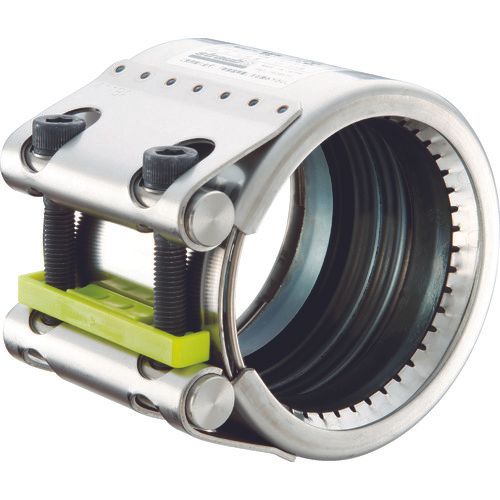

SHO-BOND G-20NSS
