MADE IN JAPAN

Đặc điểm

• No welding or threading is required; pipes can be connected with just a torque wrench.
• The grip ring and sealing rubber provide high resistance to pipe detachment and excellent sealing performance.
• Reducing work time can lower labor costs.

Ứng dụng

• For connecting various types of piping, including water supply, hot water, chilled/hot water, and drainage.

Thông số chi tiết

• Suitable piping: Carbon steel pipes for piping / VLP / PLP / Stainless steel pipes
• Fluid temperature: -30 to 90°C (Not suitable for steam)
• Operating pressure: Water, chemicals / Steel pipes 2.0 MPa, SUS pipes 1.6 MPa Air / 1.0 MPa Hot water supply / Same as water below 80°C, 1.0 MPa between 80°C and 90°C
• Japan Water Works Association certified product
• Nominal diameter A: 40
• Nominal diameter B: 1 1/2
• Casing width (mm): 61.5
• Rubber lip spacing (mm): 20
• Tightening bolt hex socket size (mm): 6
• Standard torque value (N・m): 15
• Suitable fluids: Water, hot water, air, chemicals

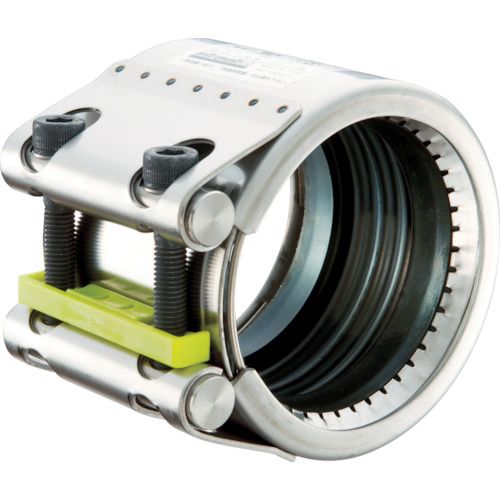

SHO-BOND G-40ESS
