MADE IN JAPAN

Đặc điểm

• The metal-to-metal contact structure eliminates the need for a torque wrench, making construction management even easier.

Ứng dụng

• For various types of piping, including water supply, hot water supply, chilled and hot water, and drainage.

Thông số chi tiết

• Suitable piping: Carbon steel pipes for piping / VLP / PLP / Stainless steel pipes
• Fluid temperature: -30 to 90°C (Not for use with steam)
• Operating pressure: Water, chemicals / 1.6 MPa Air / 1.0 MPa Hot water supply / 1.6 MPa for temperatures below 80°C, 1.0 MPa for temperatures between 80°C and 90°C
• Japan Water Works Association certified product Complies with
• Food Sanitation Law Nominal
• diameter A: 100
• Nominal diameter B: 4
• Suitable pipe outer diameter (mm): 114.3
• Casing width (mm): 96.0
• Rubber lip spacing (mm): 41
• Tightening bolt hex socket size (mm): 8
• Suitable fluids: Water, hot water, air, chemicals

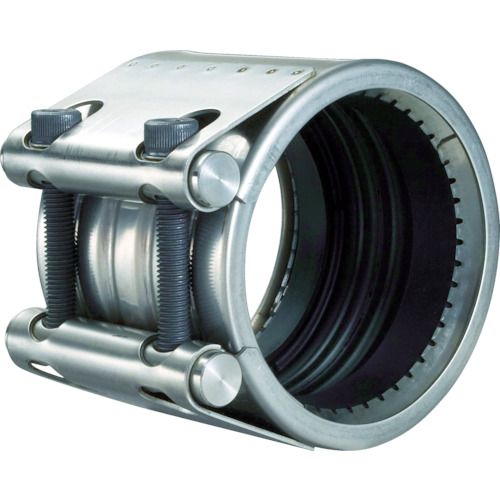

SHO-BOND GX-100E
