MADE IN JAPAN

Đặc điểm

• It can repair widespread pinholes and corrosion cracks.
• The work can be done without stopping the fluid flow.

Ứng dụng

• For repairing various types of piping.

Thông số chi tiết

• Suitable piping: Carbon steel pipes for piping, cast iron pipes for water supply, stainless steel pipes, etc.
• Fluid temperature (°C): -10 to 60°C
• Operating pressure: Liquid/1.0 MPa, Air/Organic gas/0.5
• MPa 65A to 200A are certified by the Japan Water Works Association. Complies
• with the Food Sanitation Law. Nominal
• diameter A: 200 Nominal
• diameter B: 8
• Suitable pipe outer diameter (mm): 212 to 225
• Casing width (mm): 200
• Tightening bolt hexagon size (mm): 19
• Standard torque value (N・m): 60
• Suitable fluids: Water, oil, gas

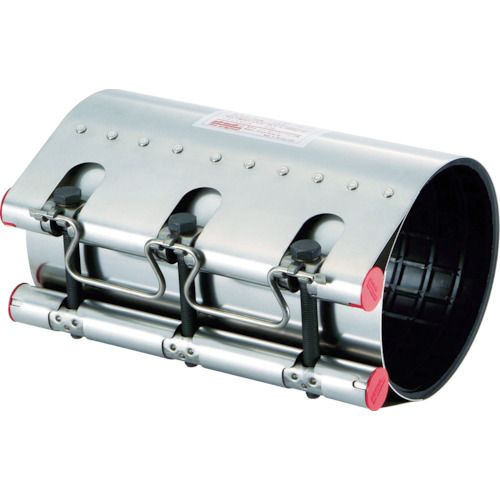

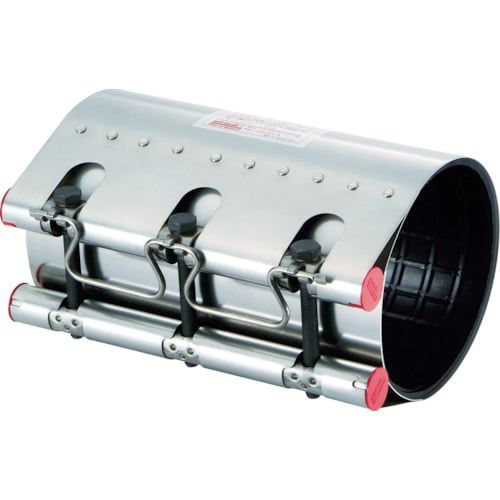

SHO-BOND CW-200N2
