MADE IN JAPAN

Đặc điểm

• This is a slim type with a width of 248mm.
• Despite its compact size, it boasts a cooling capacity of 1400W.
• It comes with an external circulation flow control valve.
• The IN/OUT nozzles use a coupling system.
• The unit is equipped with protective devices such as a ground fault circuit breaker and a thermal protector for the circulation pump.

Ứng dụng

• For a stable supply of cooling water to rotary evaporators, Soxhlet extractors, and various distillation apparatuses.

Thông số chi tiết

• Closed-circulation type
• . Operating ambient temperature range: 5 to 35°C.
• Tank capacity: approx. 9L.
• Nozzle diameter: Φ7.5mm/Φ10.5mm.
• Width (mm): 248.
• Depth (mm): 448.
• Height (mm): 748.
• Maximum flow rate (L/min) (50/60Hz): 14/17.
• Power supply (V): Single-phase 100.
• Temperature control range (°C): -20 to 20.
• Cooling capacity (W) (50Hz): 1400 (water temperature 20°C/room temperature 20°C), 1200 (water temperature 10°C/room temperature 20°C).
• Cooling capacity (W) (50Hz/at 20°C): 1400.
• Volume (L): 9.
• Power consumption (W) (50Hz/60Hz): 1200/1300

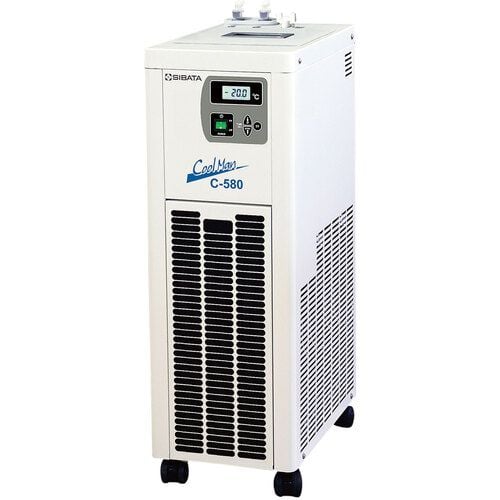

SIBATA 051140-580
