Đặc điểm

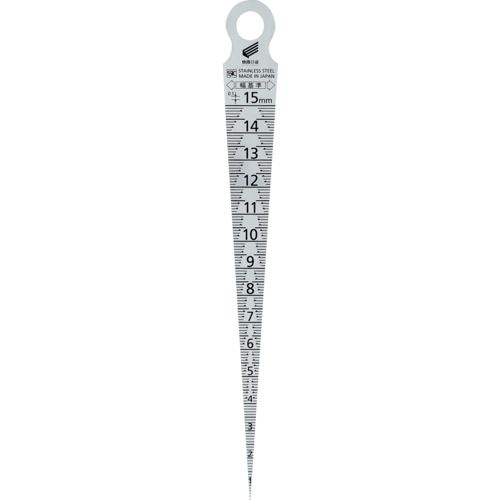

• Simply insert it into the gap to easily measure the dimensions of grooves and gaps.
• The scale has easy-to-read stepped graduations in 0.1mm increments.
• The 0.2mm scale is easy to see even when hidden by a pipe.
• The edges are chamfered to prevent injury to your hands.
• Comes with a length scale on the back and a conversion table for round holes.
• It has a non-reflective silver finish.

Ứng dụng

• For measuring grooves, gaps, hole diameters, and lengths

Thông số chi tiết

• Graduation (mm): 0.1
• Taper angle: 7 9 10
• Plate thickness (mm): 1
• Length measurement range (mm): 0-120
• Length measurement graduation (mm): 1
• Hardness (HV): 480
• Length (mm): 148.5
• Measurement range (mm): 1-15
• Instrument error (mm): ±0.05
• Precision (mm): ±0.05
• Thickness (mm): 1

SK TPG-700AKD
