MADE IN JAPAN

Đặc điểm

• Our welding gauge can measure excess weld, fillet, leg length, etc. with one tool.
• Each welding gauge has the following Đặc điểm. WG-1: A standard welding gauge that can measure weld reinforcement, fillet, leg length, etc. WG-2: A model that adds undercut measurement functionality to the WG-1. WG-3, 5: Can measure weld reinforcement up to 50 mm. The WG-3 can also measure undercut. WGU-7M, 8M, 9M: Models that excel at measuring undercut. The 8M and 9M can also measure bulges and bead width after pressure welding. WGF-60, 50: Models that are compatible with irregular fillet welding with grooves.
• It is ideal for speeding up welding work and streamlining quality control.
• It is sturdy, lightweight and easy to carry (comes with a vinyl case).
• Comes with a certificate of passing.
• Comes with a certificate of passing.

Ứng dụng

• For measuring the size and angle of weld excess and fillet

Thông số chi tiết

• Length measurement accuracy (mm): ±0.4
• Gap measurement instrument error (mm): ±0.4
• Throat thickness measurement instrument error (mm): ±0.4
• Body ruler scale (mm): 40
• Overfill height (mm): 10
• Fillet leg length (mm): 20
• Fillet throat thickness (mm): 10
• Undercut depth (mm): -
• Bevel angle (°): 0-60 (minimum reading 5)
• Length measurement instrument error (mm): ±0.4
• Angle measurement instrument error (°): ±0.7
• Measurable bevel angle (°): 0-60 (minimum reading 5)

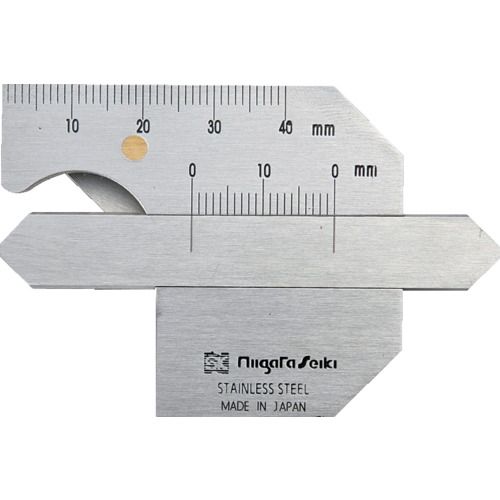

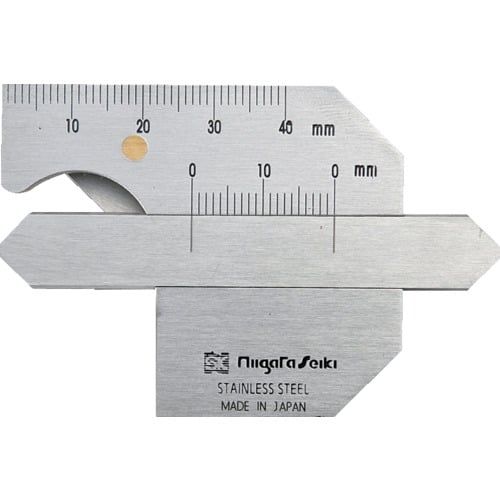

SK WG-1
