MADE IN JAPAN

Đặc điểm

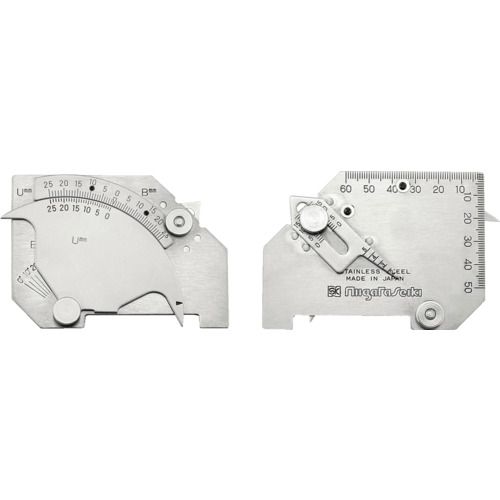

• Our welding gauge can measure excess weld, fillet, leg length, etc. with one tool.
• Each welding gauge has the following Đặc điểm. WG-1: A standard welding gauge that can measure weld reinforcement, fillet, leg length, etc. WG-2: A model that adds undercut measurement functionality to the WG-1. WG-3, 5: Can measure weld reinforcement up to 50 mm. The WG-3 can also measure undercut. WGU-7M, 8M, 9M: Models that excel at measuring undercut. The 8M and 9M can also measure bulges and bead width after pressure welding. WGF-60, 50: Models that are compatible with irregular fillet welding with grooves.
• It is ideal for speeding up welding work and streamlining quality control.
• It is very useful for general welding, construction, shipbuilding, bridges, and other steel frame and assembly welding work.
• The scale can be read on the same plane, making it extremely easy to read.
• Comes with a vinyl case for easy portability.

Ứng dụng

• For measuring the size and angle of weld excess and fillet

Thông số chi tiết

• Length measurement accuracy (mm): ±0.6
• Angle measurement error (°): ±2
• Gap measurement error (mm): ±0.6
• Throat thickness measurement error (mm): ±0.6
• Body ruler scale (mm): 50, 60
• Overfill height (mm): 25
• Fillet leg length (mm): 25
• Fillet throat thickness (mm): 15
• Undercut depth (mm): 25
• Bevel angle (°): 0-60 (minimum reading 5)
• Length measurement error (mm): ±0.6
• Measurable bevel angle (°): 0-60 (minimum reading 5)

SK WGU-7M
