MADE IN JAPAN

Đặc điểm

• Constant operating force that is not affected by supply pressure.
• Made of impact-resistant resin.
• It's easy to separate and environmentally friendly.
• With a pressure loss of less than 1%, the compressor's power consumption is reduced by 10%.

Ứng dụng

• Saves air and energy when blowing air.

Thông số chi tiết

• Operating pressure range: 0 to 1.0 MPa
• Effective cross-sectional area: 30 mm² (with SMC nozzle removed)
• Pressure loss: 1% or less
• Nozzle mounting port: Rc1/4
• Air mounting port: Rc1/4
• Overall length (mm): 117.5
• Color: Urban white

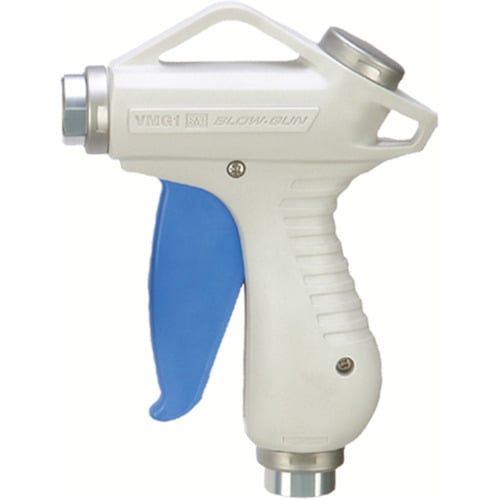

SMC VMG11W-02
