MADE IN JAPAN

Đặc điểm

• This is an easy-to-use, general-Ứng dụng type.
• The mechanical seal uses silicon carbide.
• It has good self-priming and re-priming capabilities after drawing in air, and lasts a long time.
• Voluntary emission regulations
• Engine compliant with primary regulations (equivalent to EPA secondary regulations)

Ứng dụng

• Semi-trash can be used for pumping water during droughts and for general drainage.

Thông số chi tiết

• Inlet diameter: 80mm (3” firefighting)
• Outlet diameter: 80mm (3” firefighting)
• Length x Width x Height (mm): 755 x 450 x 565
• Discharge rate (L/min): 1000
• Total head (m): 30
• Inlet diameter (mm): 80
• Overall length (mm): 755
• Overall height (mm): 565
• Overall width (mm): 450
• Fuel tank capacity (L): 3.3
• Operating time on a full tank (minutes): 140
• Fuel used: JIS No. 2 diesel
• Engine type: L70V6-PESU2
• Engine manufacturer: Yanmar
• Maximum output (kW/rpm): 4.8/3600
• Discharge volume (L/min): 1000
• Rotational speed (min⁻¹): 3600

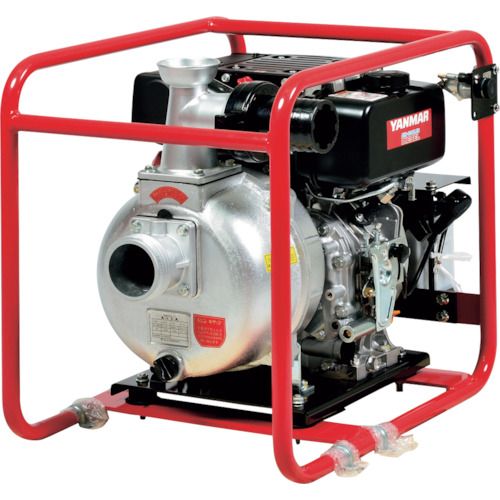

SUPER ND-80DEN2
