Đặc điểm

• The pulse frequency can be switched between four levels (2Hz, 5Hz, 10Hz, 20Hz).
• Equipped with PFC (Power Factor Correction) functionality, it effectively addresses voltage drops.
• It automatically switches between 100V and 200V.
• It has a memory function.
• It complies with the Electrical Appliances and Materials Safety Act.
• You can switch between high-frequency start and lift start.
• Manual arc welding machines are equipped with Đặc điểm such as arc force and electric shock prevention.

Ứng dụng

• For welding iron, stainless steel, copper, etc.

Thông số chi tiết

• DC TIG welding (high frequency start/lift start)
• Manual arc welding
• Rated input capacity (TIG) 4.8kVA (2.1kVA)
• Power cord length: Approx. 3m
• Welding rod diameter (mm): 1.4 to 4.0
• Rated input (kVA) (100V/200V) TIG DC: 2.1/4.8
• Rated input (kVA) (100V/200V) Manual arc welding: 2.1/5.4
• Current range (A) (100V/200V) TIG DC: 10 to 110/200
• Current range (A) (1 00V/200V) Manual arc welding: 10-70/170
• Duty cycle (%) TIG welding (100/200V): 25
• Duty cycle (%) Manual arc welding (100/200V): 25
• Duty cycle (%): 25
• Input voltage (V): Single phase 100/200
• Power cord length (m): 3
• Width (mm): 150
• Depth (mm): 405
• Height (mm): 282
• Suitable electrode diameter (mm): 1.6-2.4
• Manual arc welding possible plate thickness (MMA): 1.2-8mm (iron) 1.2-6mm (stainless steel)
• TIG welding possible plate thickness: 0.8-4.5mm (iron) 0.8-4.5mm (stainless steel) 0.8-4.5mm (cast iron)

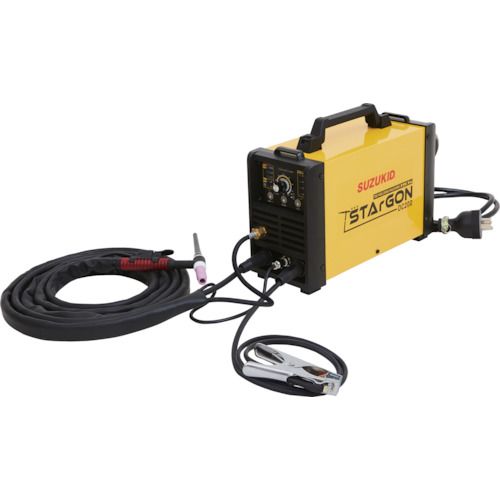

SUZUKID STG-200D
