MADE IN JAPAN

Đặc điểm

• Its unique vortex generation mechanism guides solid objects with vortices, eliminating blockages in the pump.
• It employs an oil bath type mechanical seal, allowing for operation that is nearly maintenance-free.
• The electric motor has a built-in automatic burnout prevention device.

Ứng dụng

• For construction and civil engineering.
• For industrial equipment.
• For building equipment.

Thông số chi tiết

• Foreign object passage diameter: 28 mm or less
• Non-automatic operation type
• Discharge volume (L/min): 100
• Total head (m): 3.5
• Frequency (Hz): 50
• Bore diameter (mm): 40
• Power supply (V): Single phase 100
• Current (A): 3.6
• Output (kW): 0.15
• Overall width (mm): 212
• Overall length (mm): 154
• Overall height (mm): 328
• Power cord length (m): 4

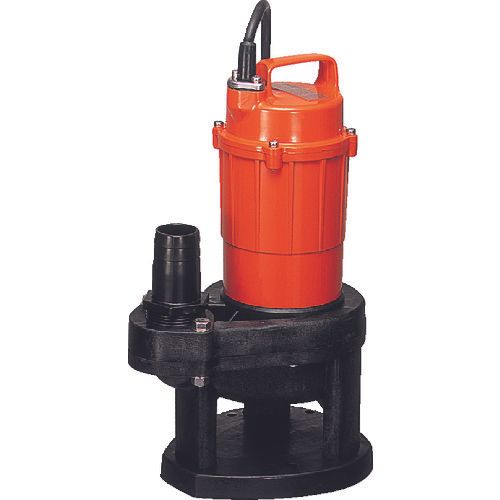

TERADA SX-150
