MADE IN JAPAN

Đặc điểm

• The mechanical seal employs an oil bath system.
• It has a built-in motor protection device.
• This is a spiral design that improves pump efficiency.
• The pump section is made entirely of reinforced plastic.
• It is possible to drain water down to a minimum level of 25mm (in non-automatic mode).

Ứng dụng

• For construction and civil engineering.
• For wastewater and sewage treatment.

Thông số chi tiết

• Power cord length: 4m
• Automatic operation type
• Stop water level (minimum): 100mm
• Start water level (maximum): 300mm
• Discharge volume (L/min): 80
• Total head (m): 5
• Frequency (Hz): 50
• Bore diameter (mm): 32
• Power supply (V): Single phase 100
• Current (A): 3.6
• Output (kW): 0.15
• Overall width (mm): 179
• Overall length (mm): 136
• Overall height (mm): 244
• Power cord length (m): 4

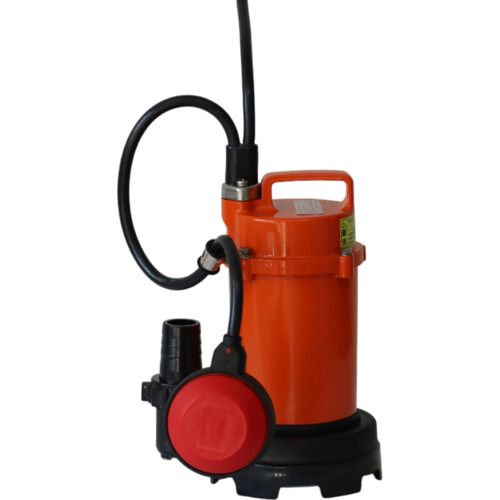

TERADA SA-150C
